ManMaTIC — Protocol Port:
A Thermodynamic Framework for Algorithmic Logistics in Aqaba
PROJECT OVERVIEW
Architecture as a Field of Negotiation Between Human Judgment and Machine Intelligence
Protocol Port is a human–machine institute in Aqaba that repositions architecture as an operational field where human judgment and machine intelligence jointly formulate, test, and authorize protocols that govern algorithmic decision-making within on-site logistics. This relationship extends through the building’s spatial and thermodynamic organization: the computing core is cooled, its heat is recovered, and reused to produce chilled water for occupied spaces—making machine operation directly productive of the human environment.
AN OPERATIONAL FIELD OF IMPACT

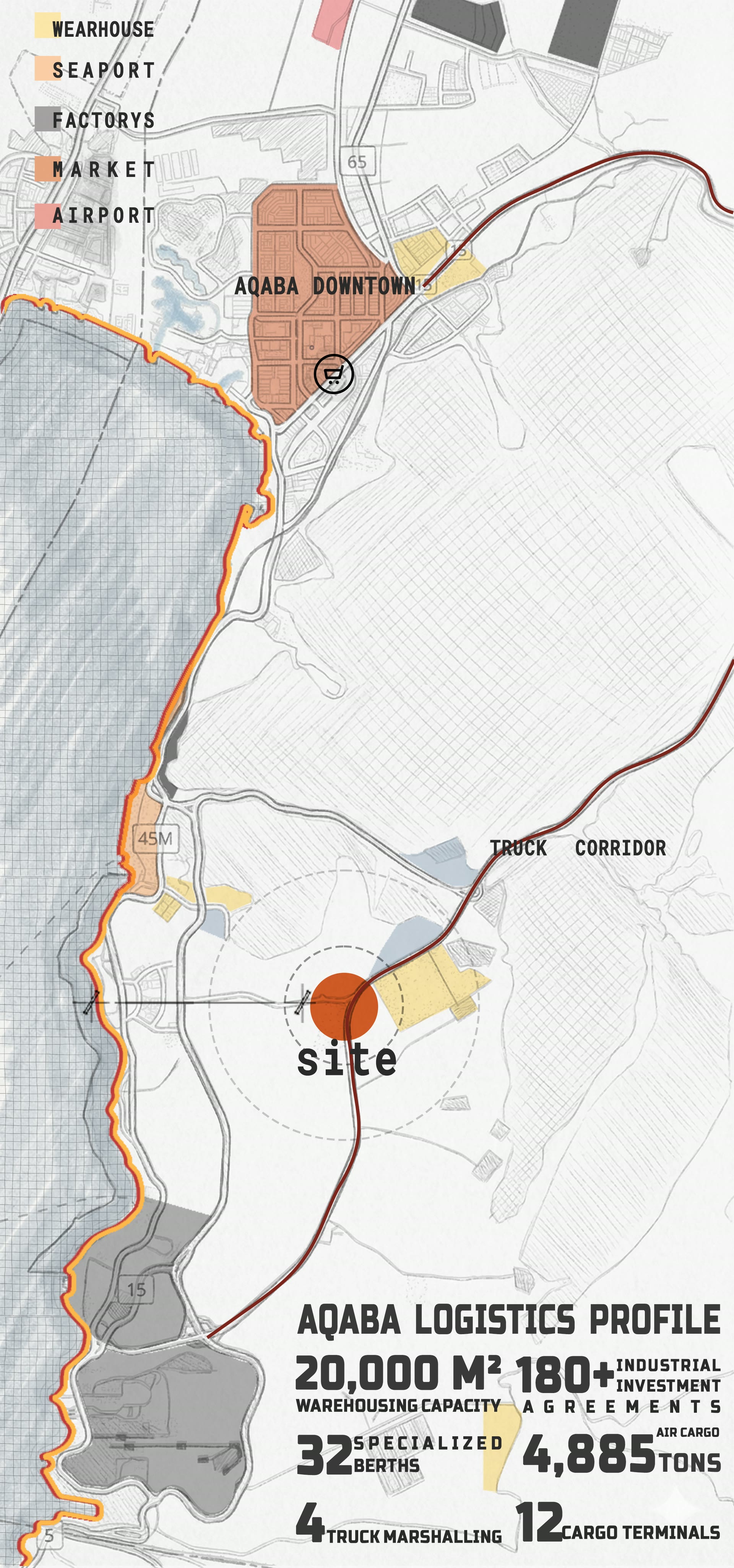

Protocol Port engages Aqaba’s connected logistics systems—from warehouses and factories to the seaport, airport, truck corridors, and cargo terminals. Its human–machine protocols are developed to support the movement of goods, data, and operational decisions across this wider network.

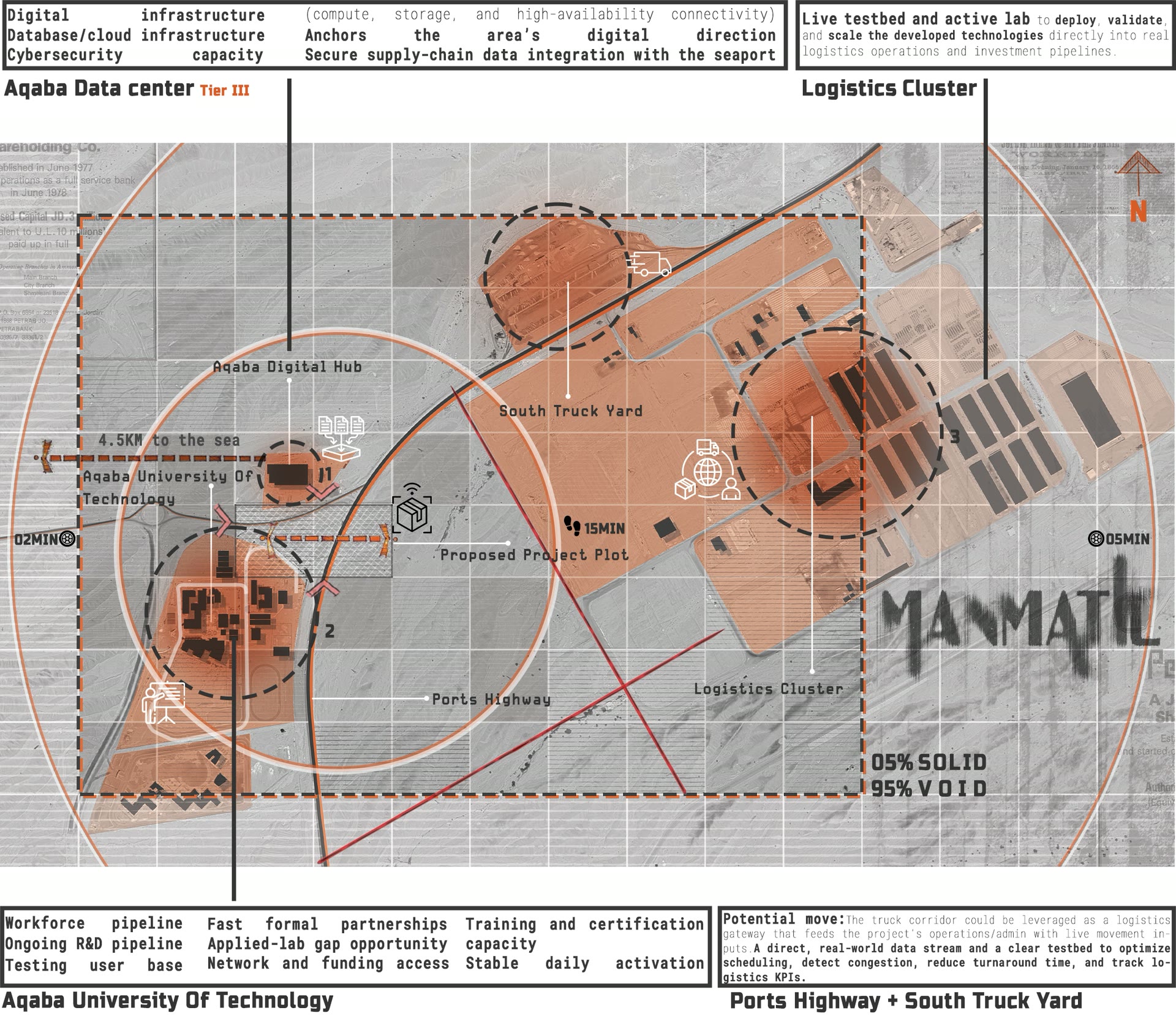

AQABA AS AN OPERATIONAL FIELD
Aqaba’s logistics territory operates as a continuous exchange between people, goods, data, energy, and infrastructure. Rather than treating the site as a neutral plot, Protocol Port reads these existing flows and operations as active conditions for research, testing, and human–machine collaboration.
WHY THIS SITE?
The site connects Aqaba’s logistics operations, digital infrastructure, and university research, creating a real field where intelligent systems can be developed, tested, and deployed for local operations.

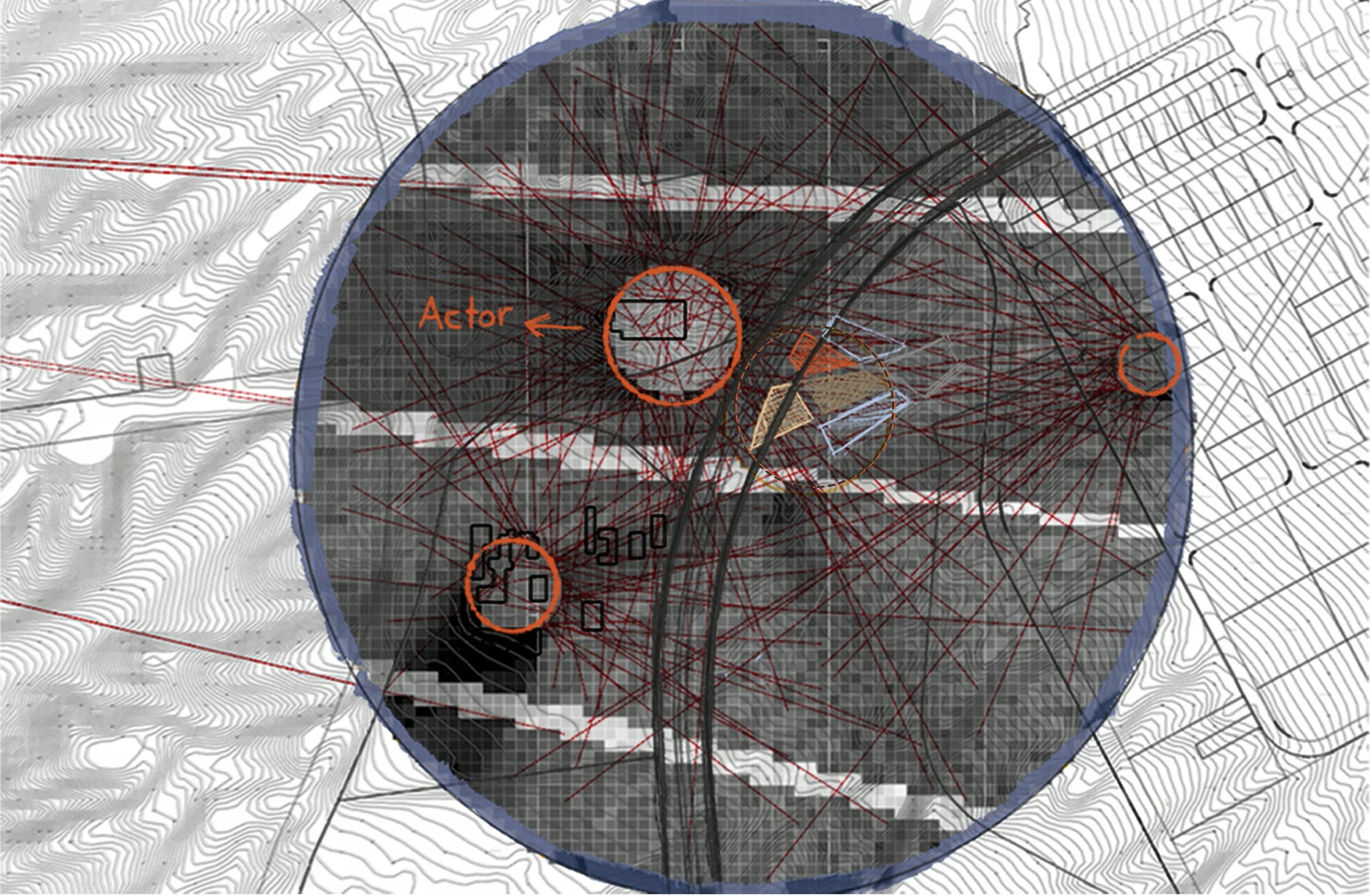

Site Actors & Urban Syntax
Mapping the actors and forces shaping the site–logistics flows, infrastructure, environmental systems, and human movement–revealing the urban syntax that organizes the project and informs its spatial formation.
METHODOLOGY

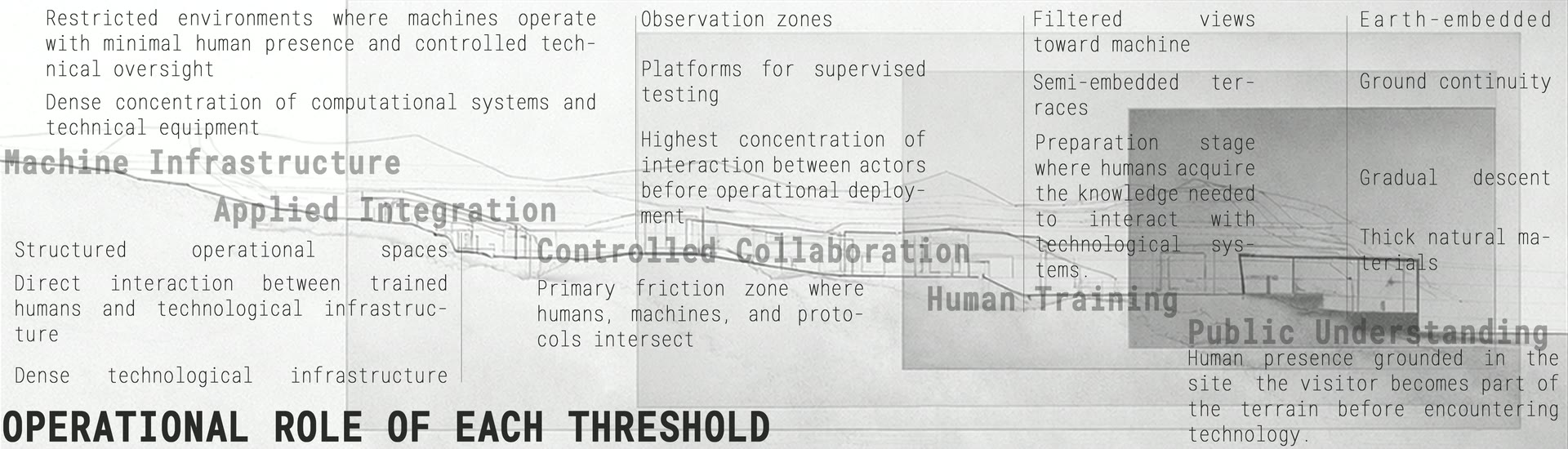

Threshold-Based Spatial Sequence
The project is organized as a sequence of spatial thresholds that gradually structure the relationship between humans and machines. The institution unfolds as a gradual spatial progression embedded within the terrain. This sequence is organized through five operational bands ranging from public understanding and learning to controlled collaboration and machine infrastructure. Each threshold partially contains the next, forming a nested transition that guides users deeper into the institutional system.
How the System is Read
The system is understood through four progressive gradient.
As users move deeper into the project, knowledge becomes more specialized, access becomes more restricted, control becomes more structured, and machine density increases.

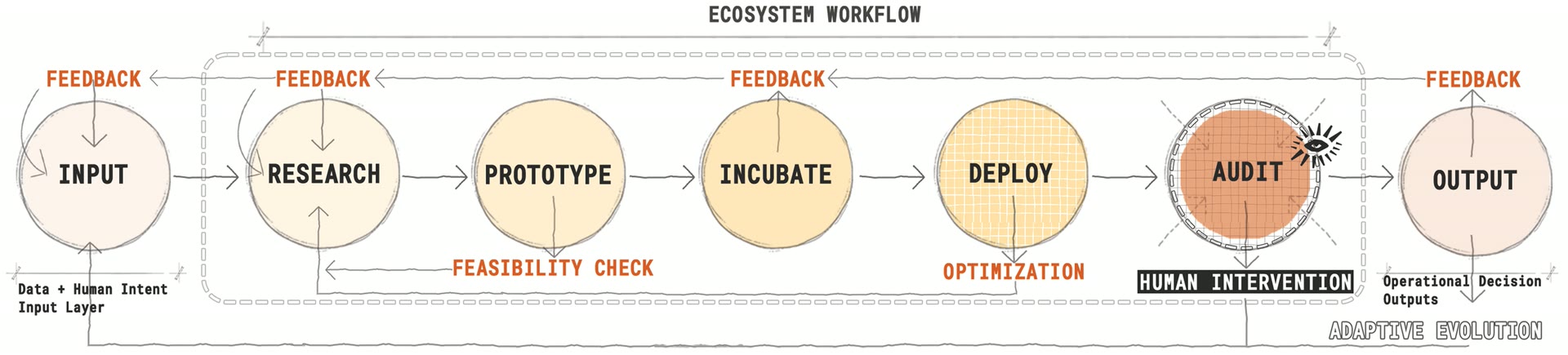

ECOSYSTEM WORKFLOW
PROTOCOL DEVELOPMENT WORKFLOW
Protocol Port operates through an iterative workflow that transforms site data and human expertise into operational protocols. Each proposal moves through research, prototyping, incubation, deployment, and audit, with continuous feedback and human review before it enters real site operations.

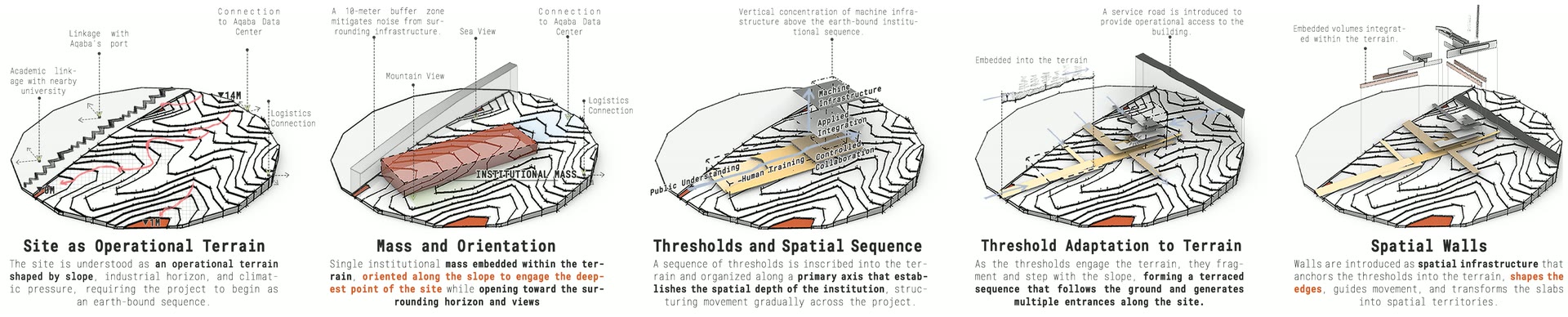

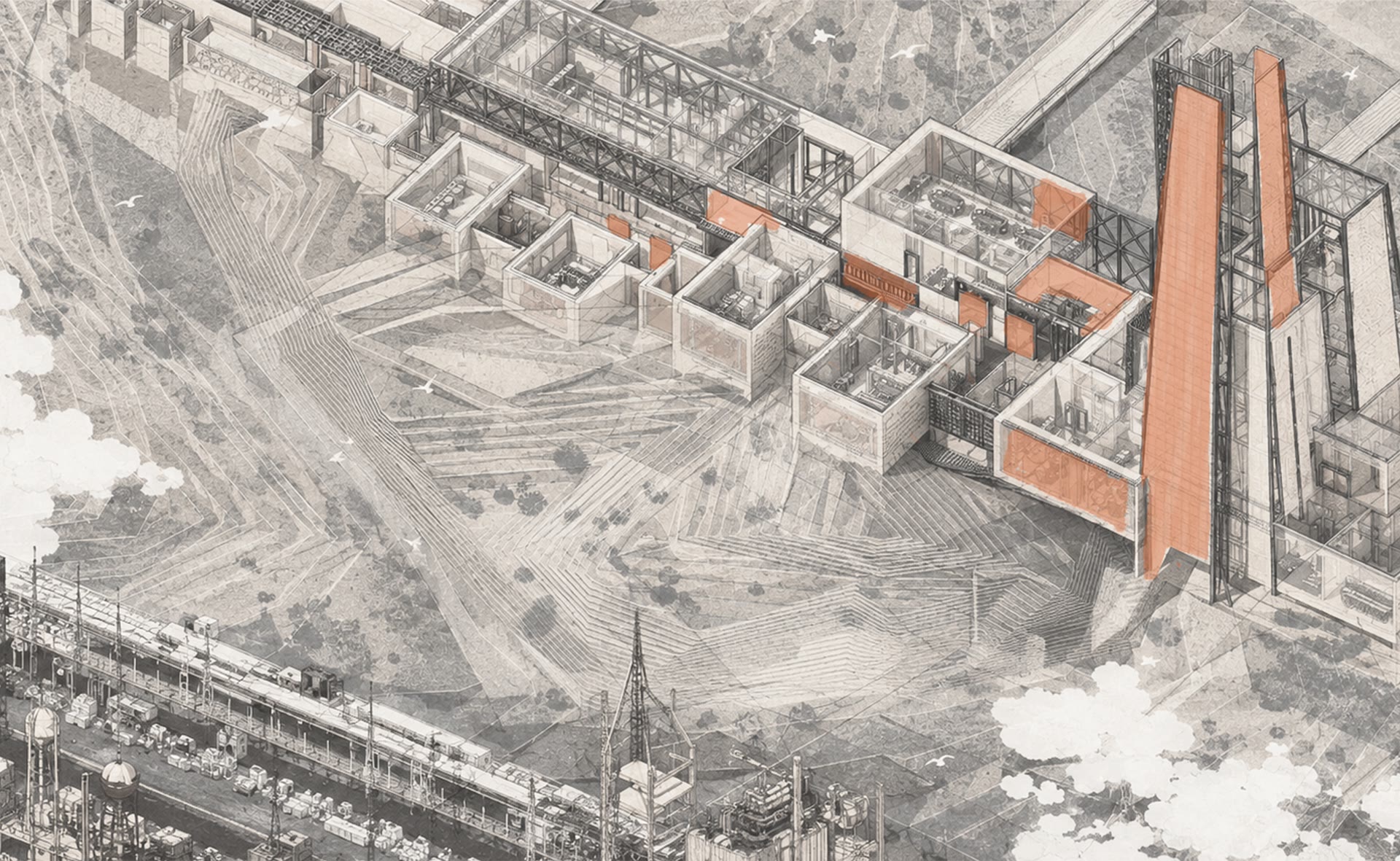

FROM OPERATIONAL TERRAIN TO SPATIAL PROTOCOL

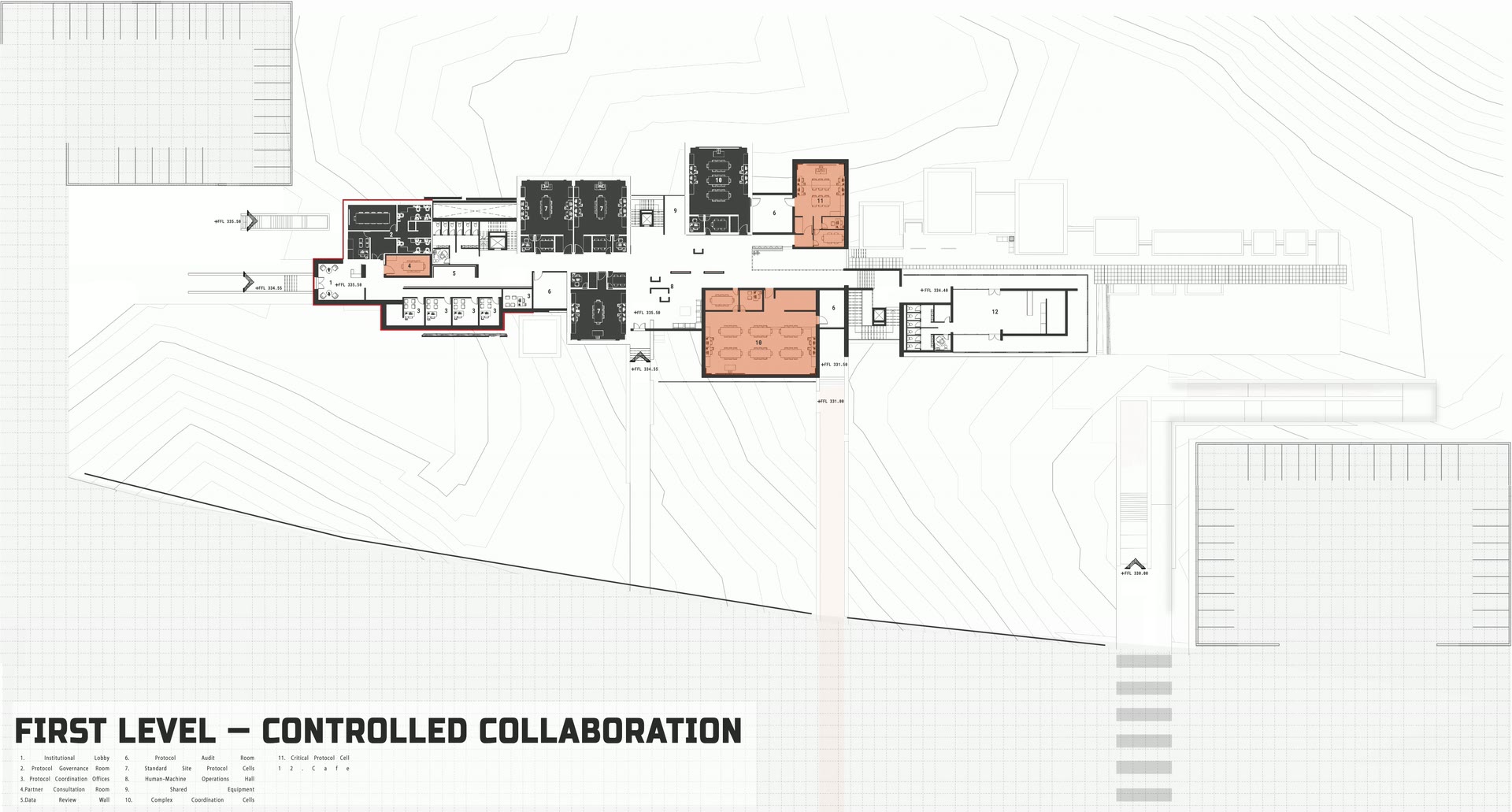

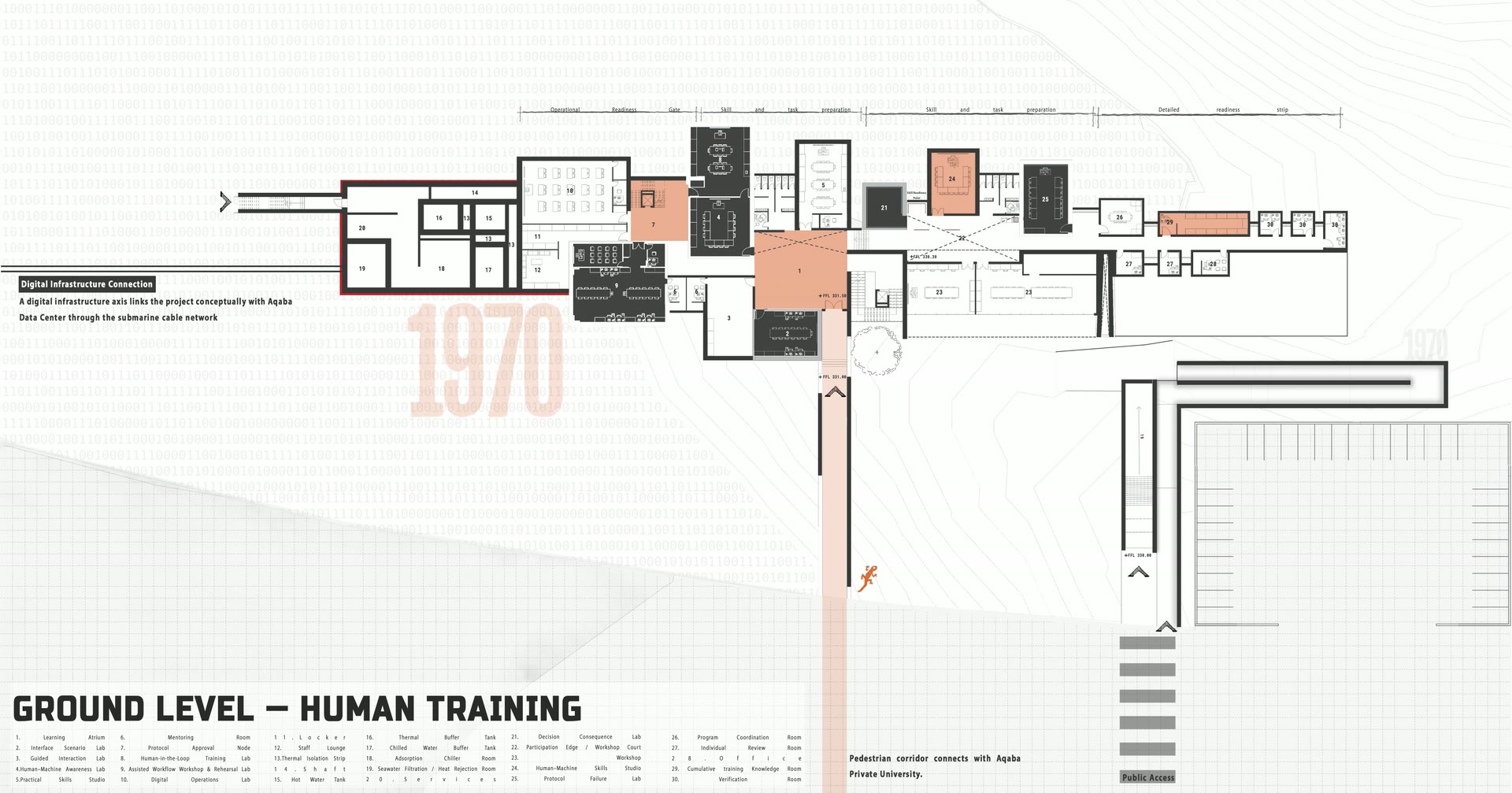

Ground-level architectural plan.

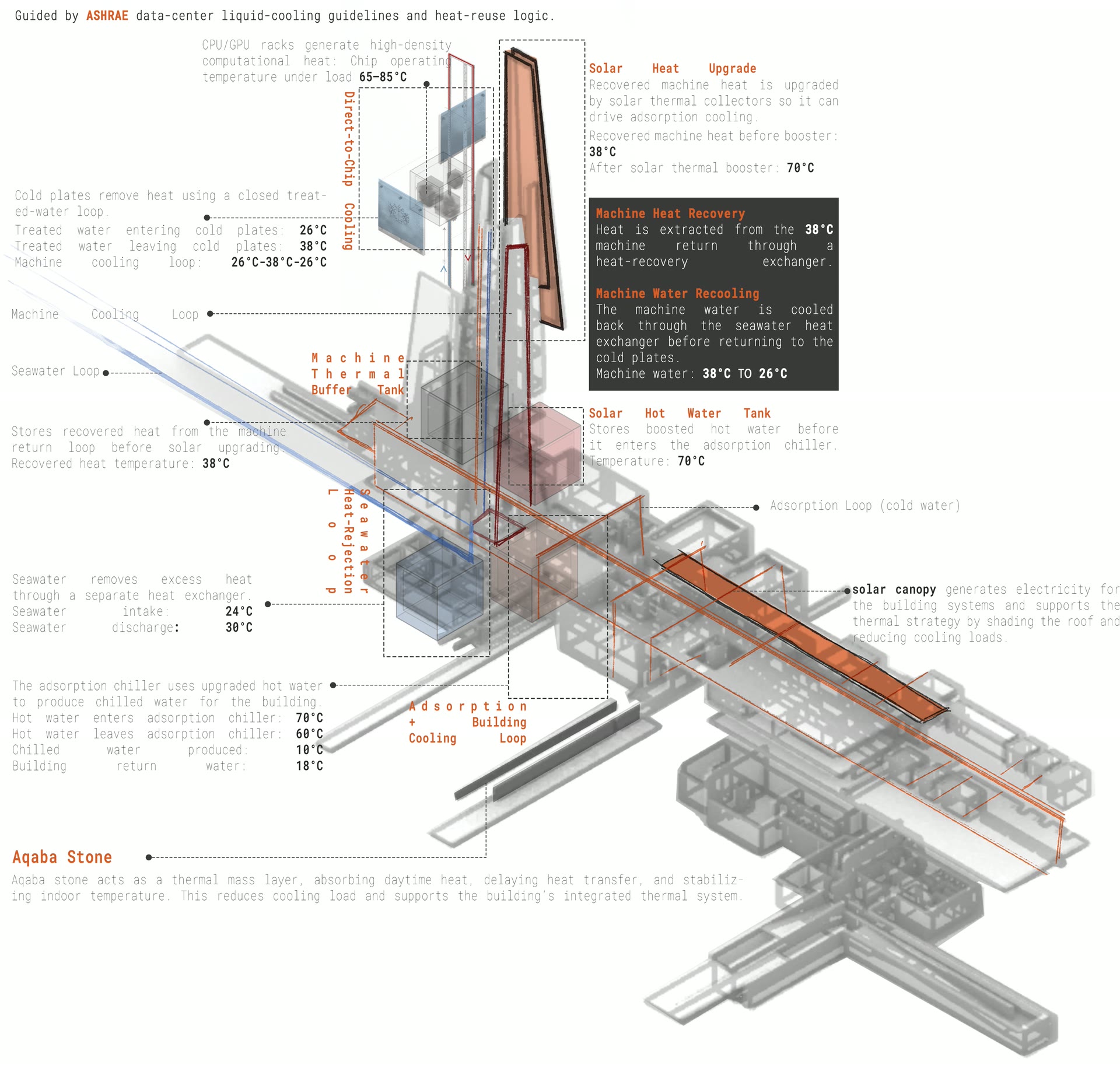

THERMODYNAMIC HUMAN–MACHINE EXCHANGE
THERMODYNAMIC HUMAN–MACHINE EXCHANGE
Recovering Machine Heat to Condition Human Space
The system operates as an integrated THERMODYNAMIC infrastructure between the machine core and the building. First, the machine racks are cooled through direct-to-chip cold plates, which capture the heat generated by CPU/GPU processing. Instead of rejecting this heat as waste, the warm water leaving the machine loop is collected, stabilized, and upgraded through a thermal buffer tank and solar thermal booster. This higher-temperature heat is then used to drive an adsorption chiller, producing chilled water that is redistributed to cool the building’s human spaces. In this way, the system performs two operations at once: it protects the machine from overheating and converts machine heat into a usable cooling source for the building.

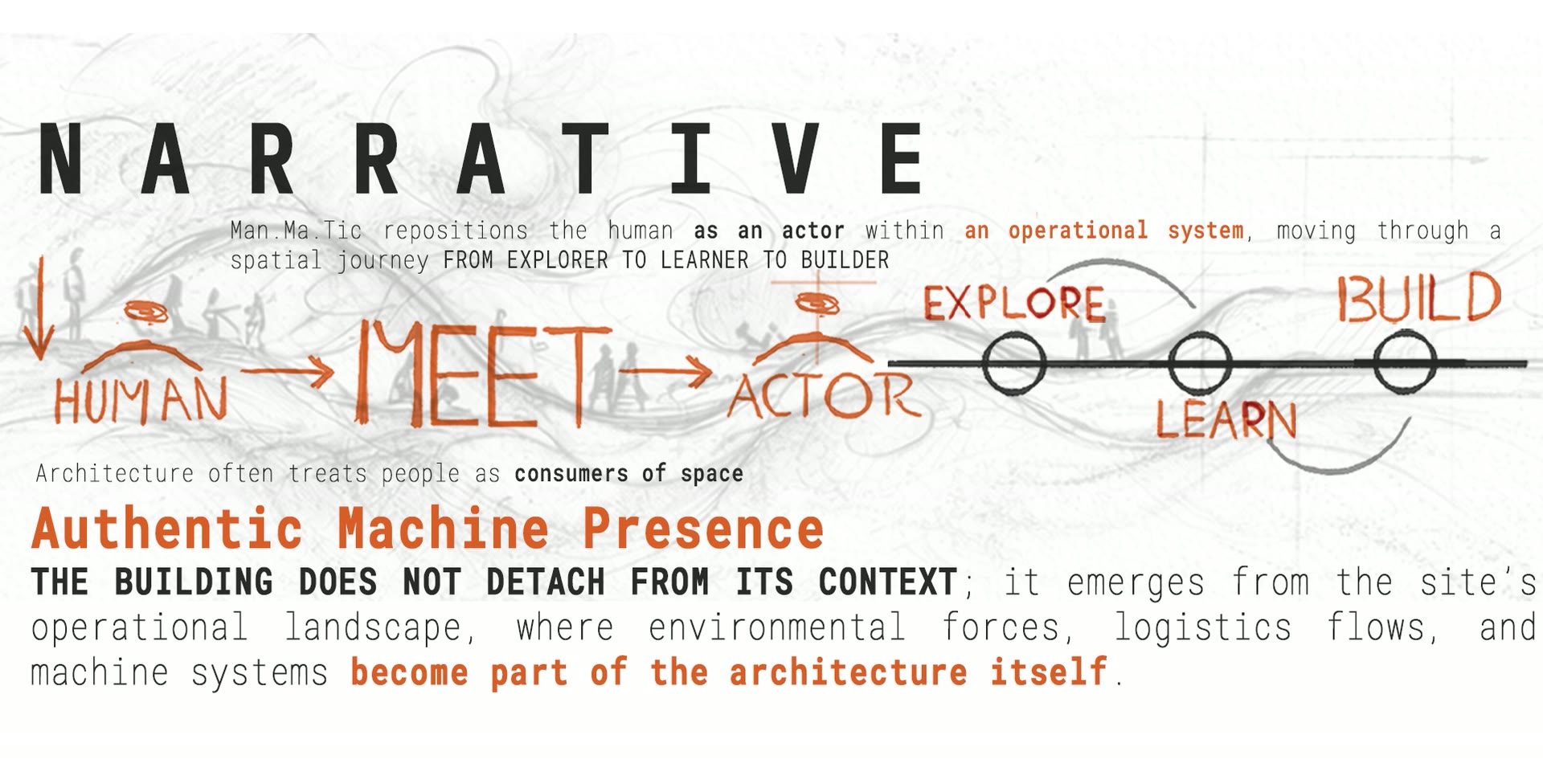

NARRATIVE
Human–Machine History traces the long evolution of the bond between humans, tools, machines, and technological systems. The journey begins with the Agricultural Revolution, when early tools changed how societies lived, worked, and organized themselves. Visitors move through a stone-carved timeline as inventions and mechanisms unfold across centuries of progress. Compressed sloping walls, filtered light, and engraved histories turn development into an immersive spatial sequence. The Mechanics of Becoming reveals the machine not as something separate from the human, but as part of humanity’s continuous becoming.
